Residential Swing

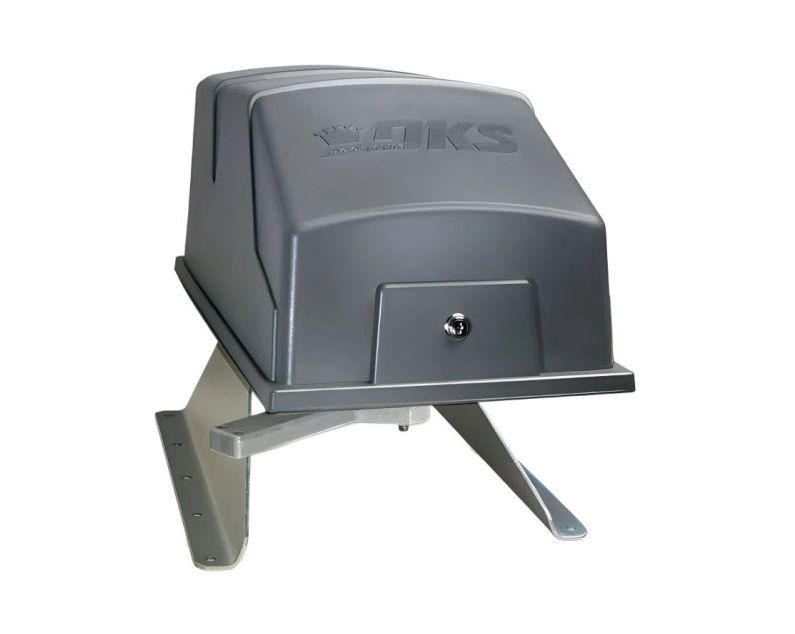

6050 / 6100 Swing DK-6050
Pad-mount swing operators for homes and light commercial. 6050 handles gates to 10 ft / 400 lb; 6100 to 14 ft / 500 lb. About 10 seconds to 90°.
Operators and Accessories
Gate operators, keypads, telephone entry, and exit / safety devices for the drive gates we fabricate. DoorKing, Viking, and FAAC in swing and slide; Linear and LiftMaster keypads; AES, CellGate, DoorBird, and DoorKing 1812 telephone entry; plus Cartell free-exit, AES e-Loop, SECO-LARM photo cells, and Optex Virtual Loop.
Jump to DoorKing · Viking · FAAC · Keypads · Telephone entry · Exit & safety · Manuals
Gate Operators
DoorKing, Viking, and FAAC in residential and commercial duty, swing and slide. We size the unit to the gate we build: weight, width, duty cycle, and battery backup or solar. Manuals are on each card.
DoorKing
Commercial Swing

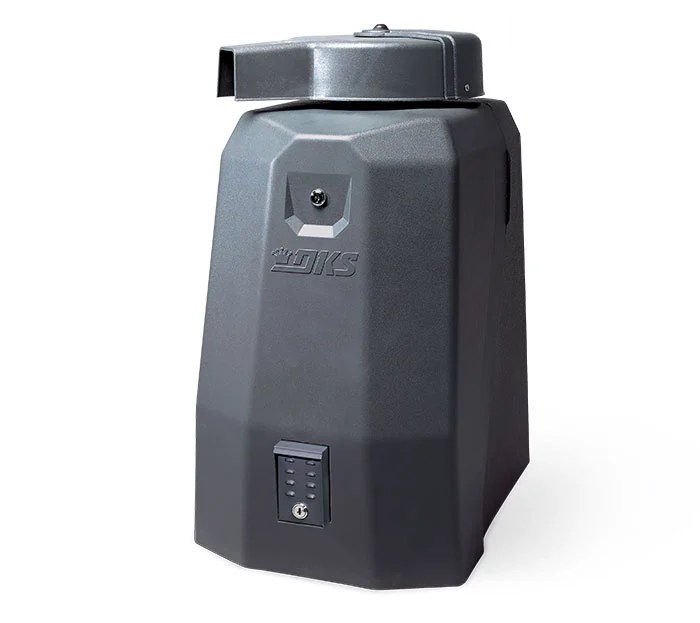

6500 Swing DK-6500
Continuous-duty commercial and industrial swing operator. 1/2 HP to 18 ft / 700 lb; 1 HP to 22 ft / 800 lb. Split-case housing for service access.
Residential Slide

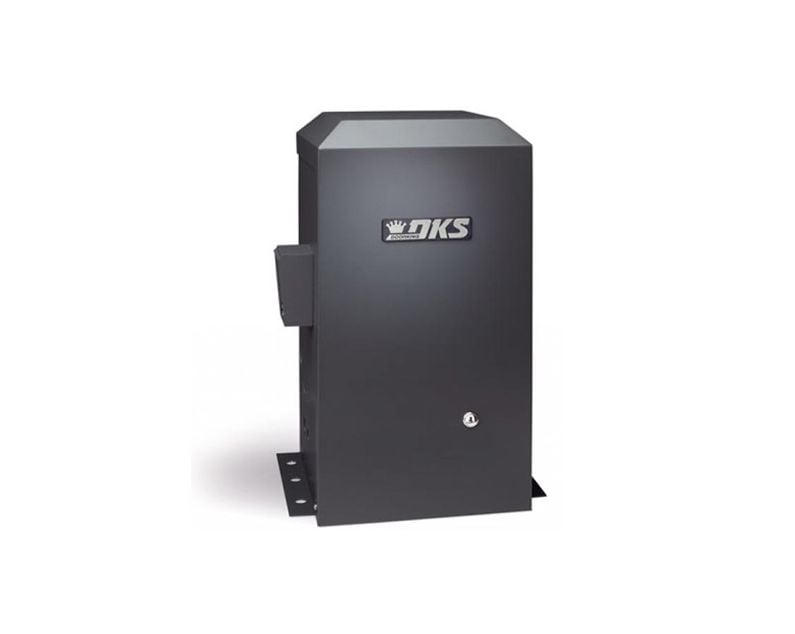

9050 Slide DK-9050
Residential slide operator for gates to 20 ft / 700 lb. 1/2 HP, about 10 in/sec, magnetic limits, fail-safe release. Front, center, or rear mount.
Commercial Slide

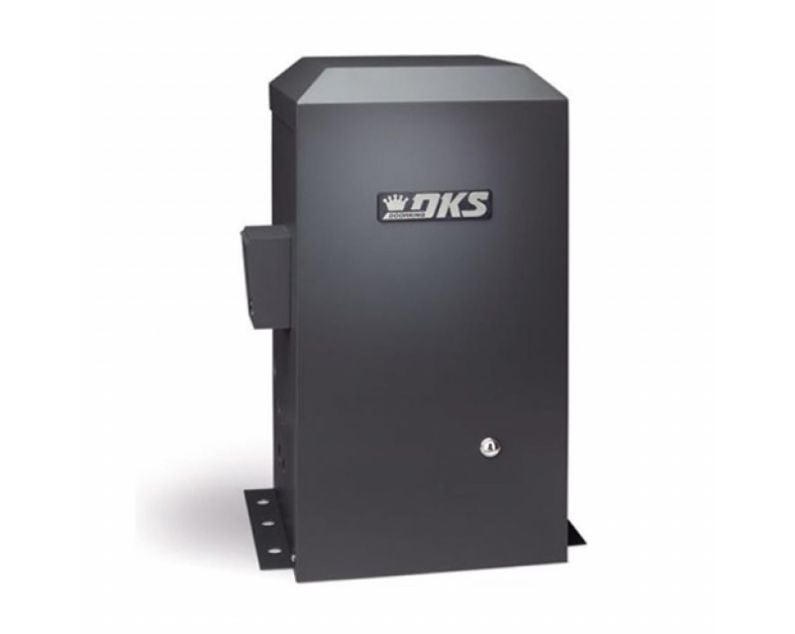

9100 Slide DK-9100
Commercial slide operator that mounts at the front, center, or rear of the gate with no field mods. Built for high-cycle use with a fail-safe design.
Viking Access Systems
Residential Swing

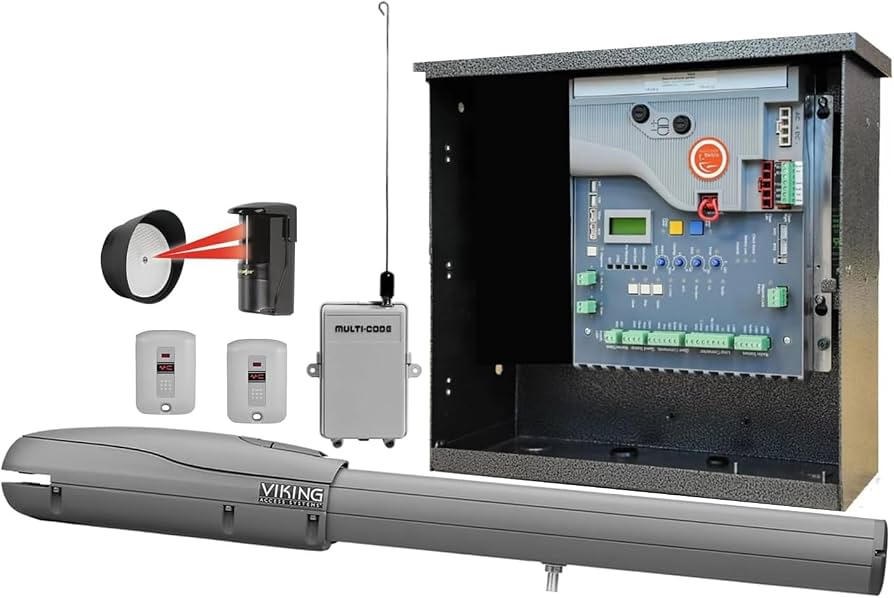

G-5 / F-1 Swing VK-G5
Heavy-duty DC swing operators for homes and light commercial. G-5 and F-1 handle gates up to about 1,500–2,000 lb, with true battery backup and soft-start / stop.
Column Swing

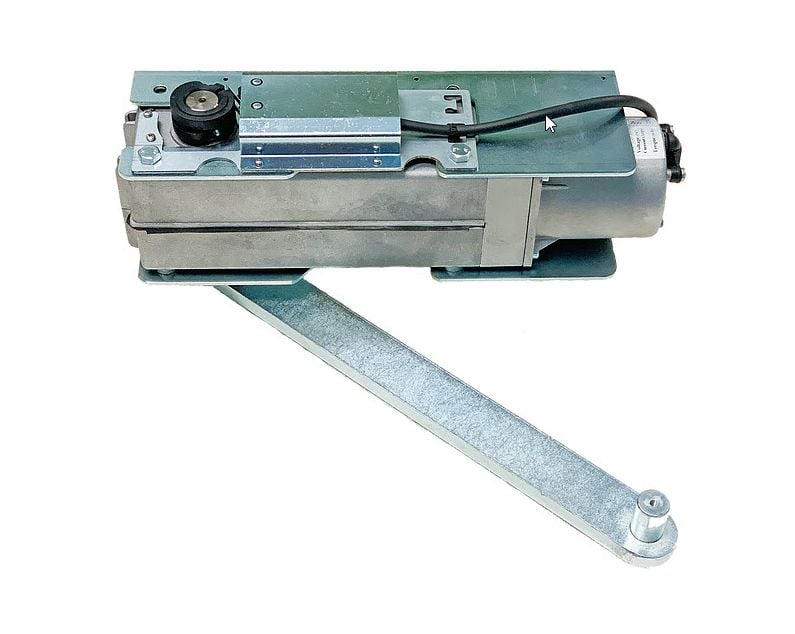

X-390 Swing VK-X390
Column-mounted swing operator for gates to 14 ft / 600 lb. Mounts on the column instead of a pad — battery backup (up to 800 cycles), speed control, and V-Flex diagnostics.
Commercial Swing

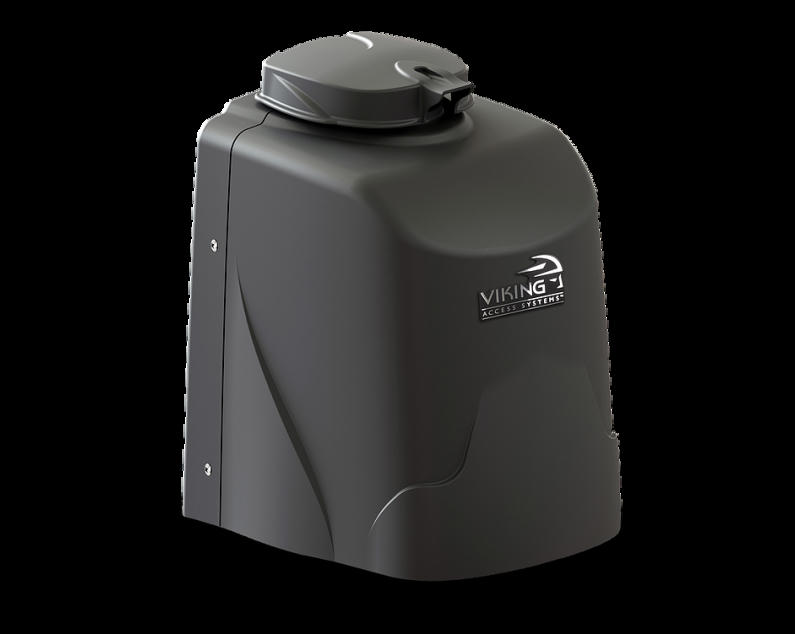

T-21 Swing VK-T21
Viking’s heavy commercial swing operator. 2,000 lb at 12 ft or 1,200 lb at 20 ft. Removable power-supply box, 13–16 seconds to 90°, battery backup, and a 1/4 in steel chassis.
Residential Slide

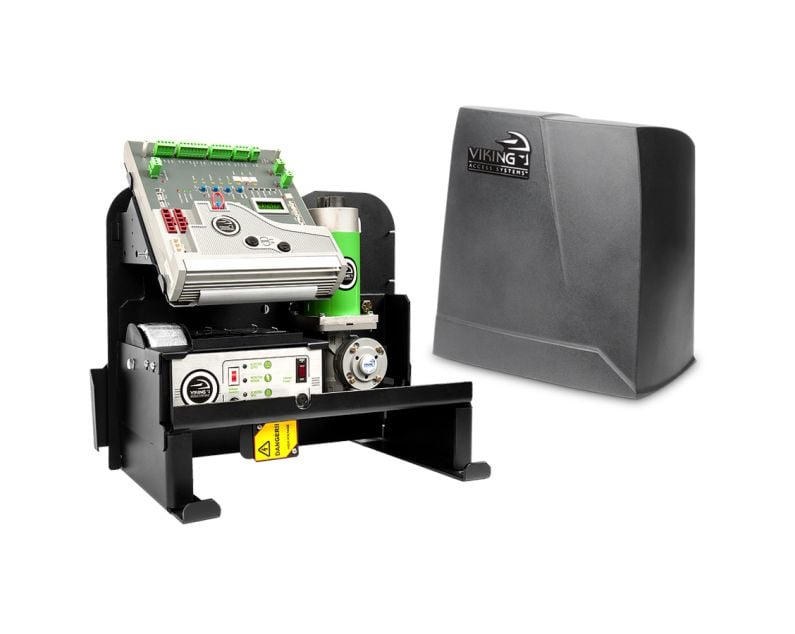

K-2 Slide VK-K2
Residential slide operator with Viking’s Smart Positioning System for accurate travel. Battery backup and solar-ready for sites without a dedicated circuit at the gate.
Residential Solar Slide

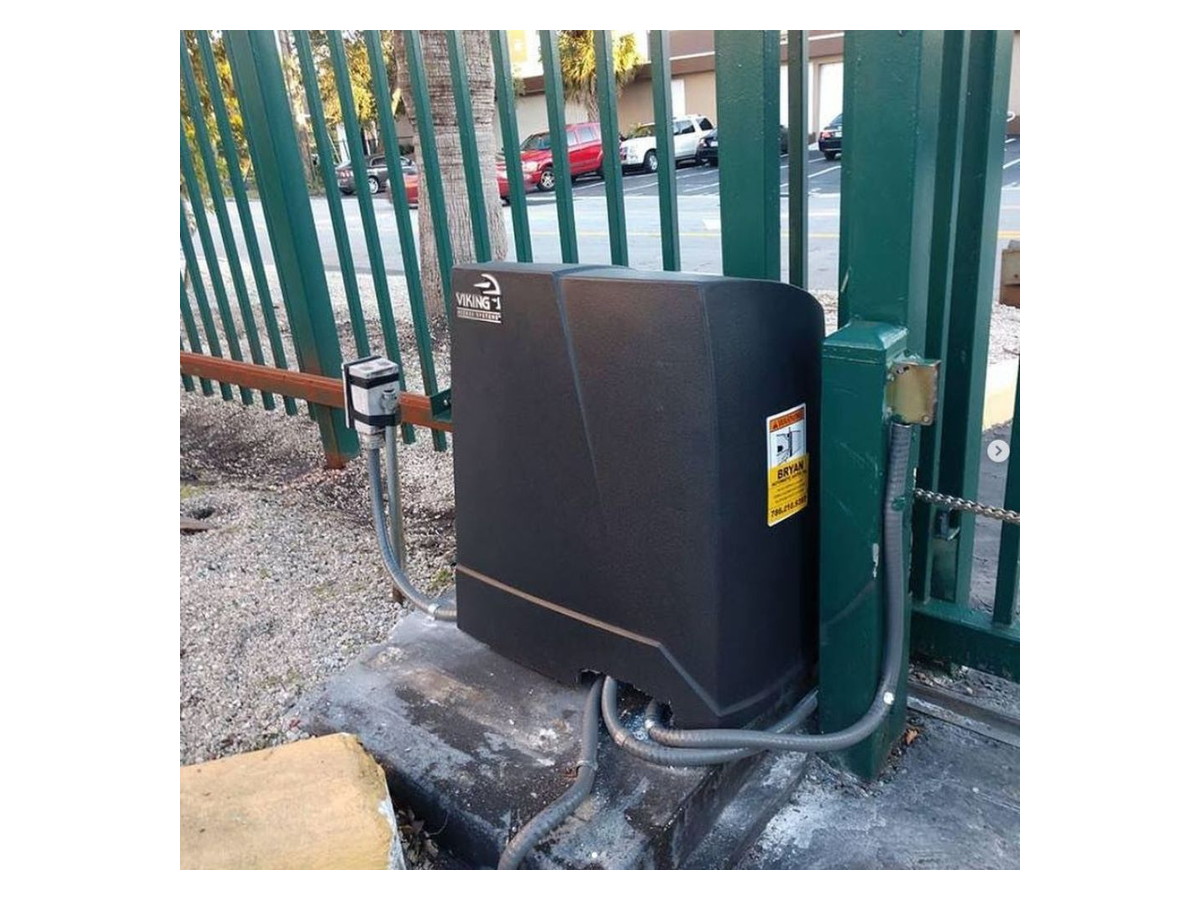

K-2S Solar Slide VA-K2SPSSLR
Pad-mount slide operator for sites with no AC at the gate. 12 VDC solar, V-Flex Solar power management, and Smart Positioning System. Gates to 30 ft / 700 lb at about 12 in/sec. Solar panel and battery are spec’d with the operator.
Commercial Slide

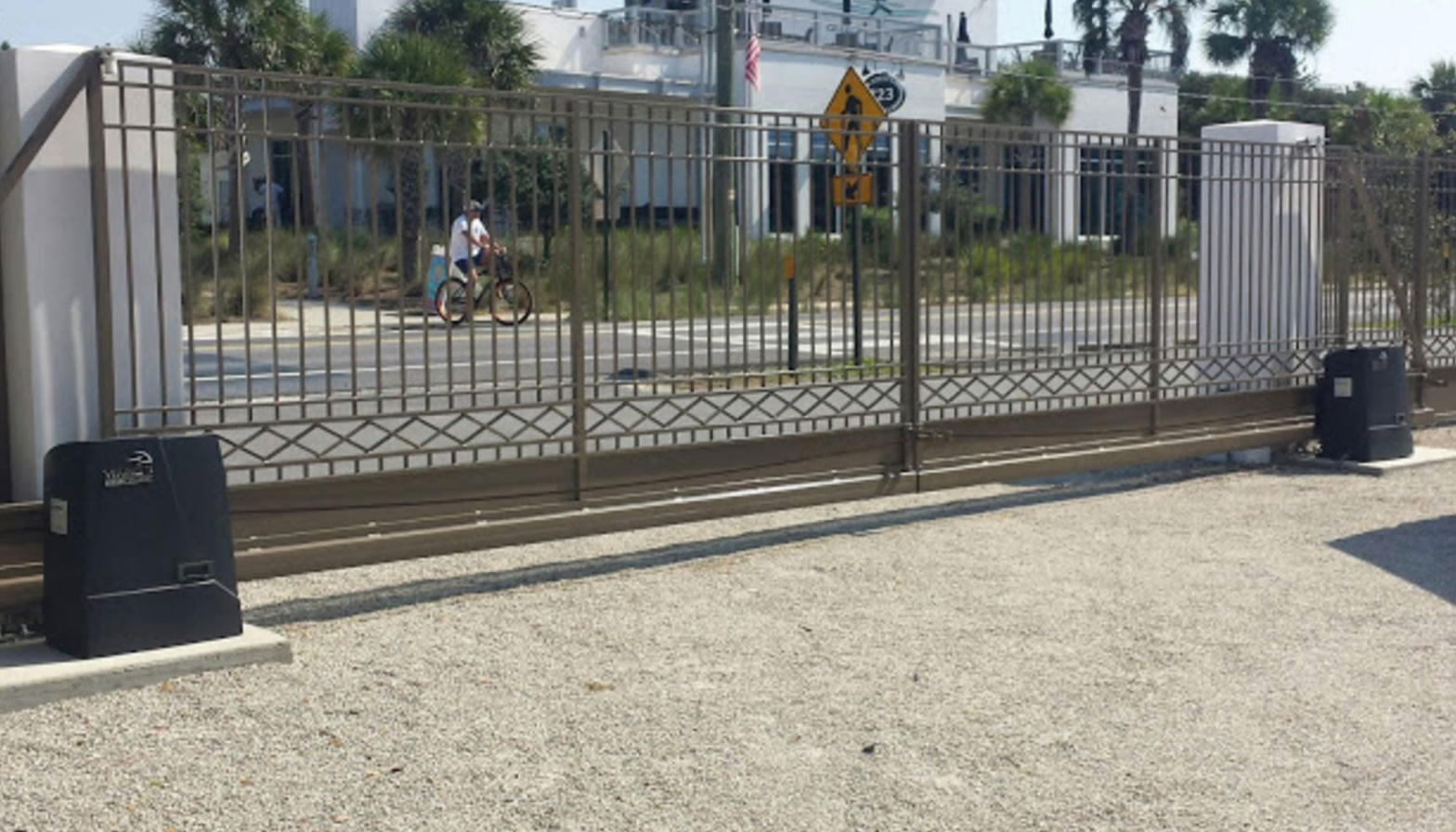

L-3 / Q-7 Slide VK-L3
Commercial slide operators. L-3 handles gates to 60 ft / 1,600 lb; Q-7 is the heavy industrial unit to 120 ft / 7,000 lb with a 2 HP DC motor and 100% duty cycle.
FAAC Gate Operators
Residential Swing

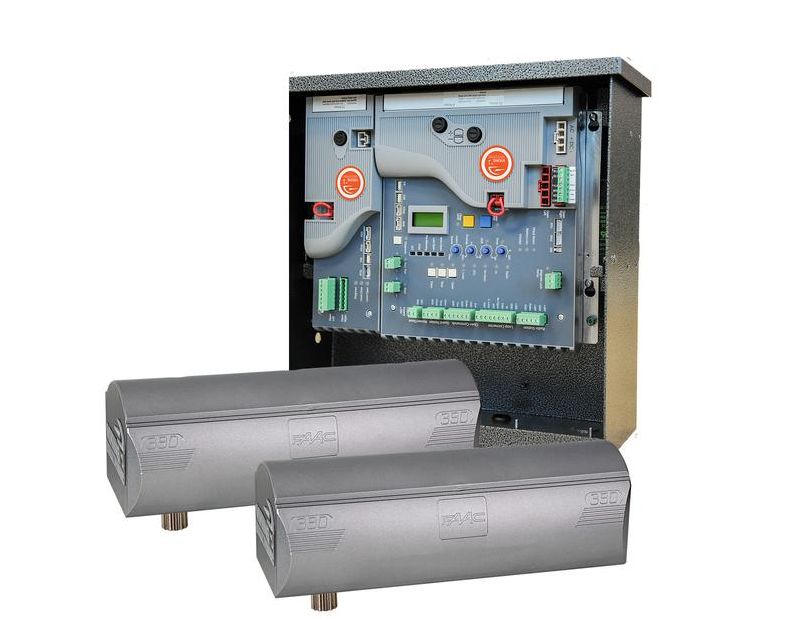

390 Swing FAAC-390
Electromechanical swing operator for residential leaves and large columns. 24 V, compact arms, battery backup available — a common spec where a pad-mount operator will not fit.
Commercial Swing

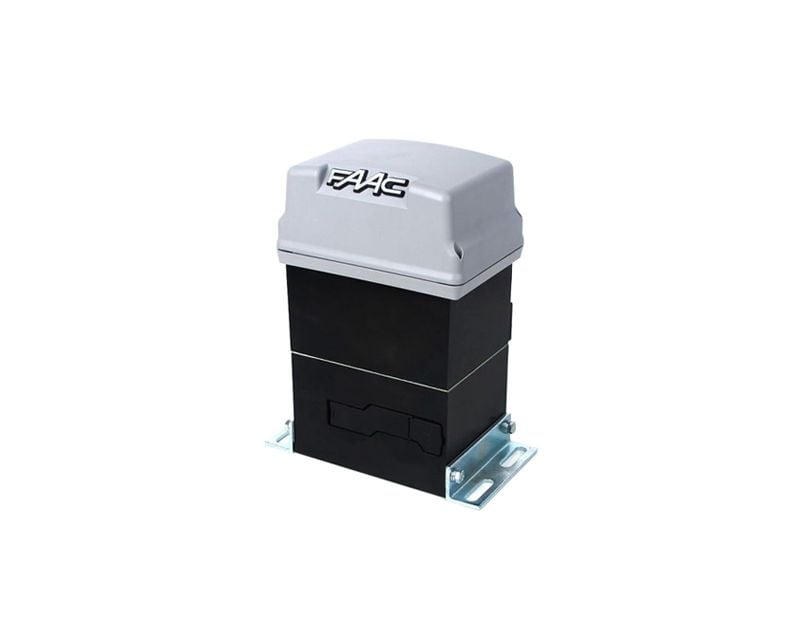

400 Swing FAAC-400
Hydraulic swing operator (400 series). Quiet, high-cycle, above-grade or paired with underground units. A frequent spec on custom ornamental commercial swing gates.
Residential Slide

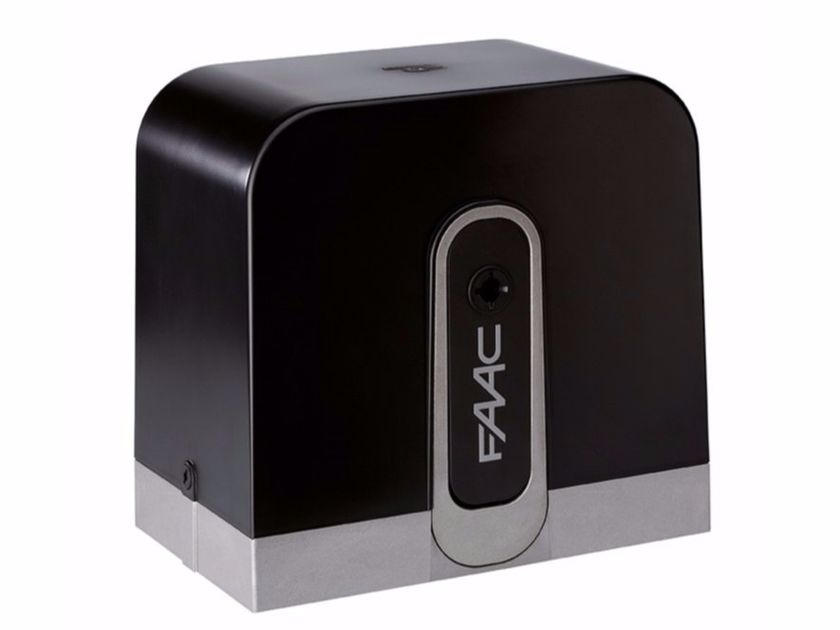

C720 Slide FAAC-C720
24 V residential slide operator. Compact, rack-and-pinion drive for home and light commercial sliding gates. Quiet operation with battery backup options.
Commercial Slide

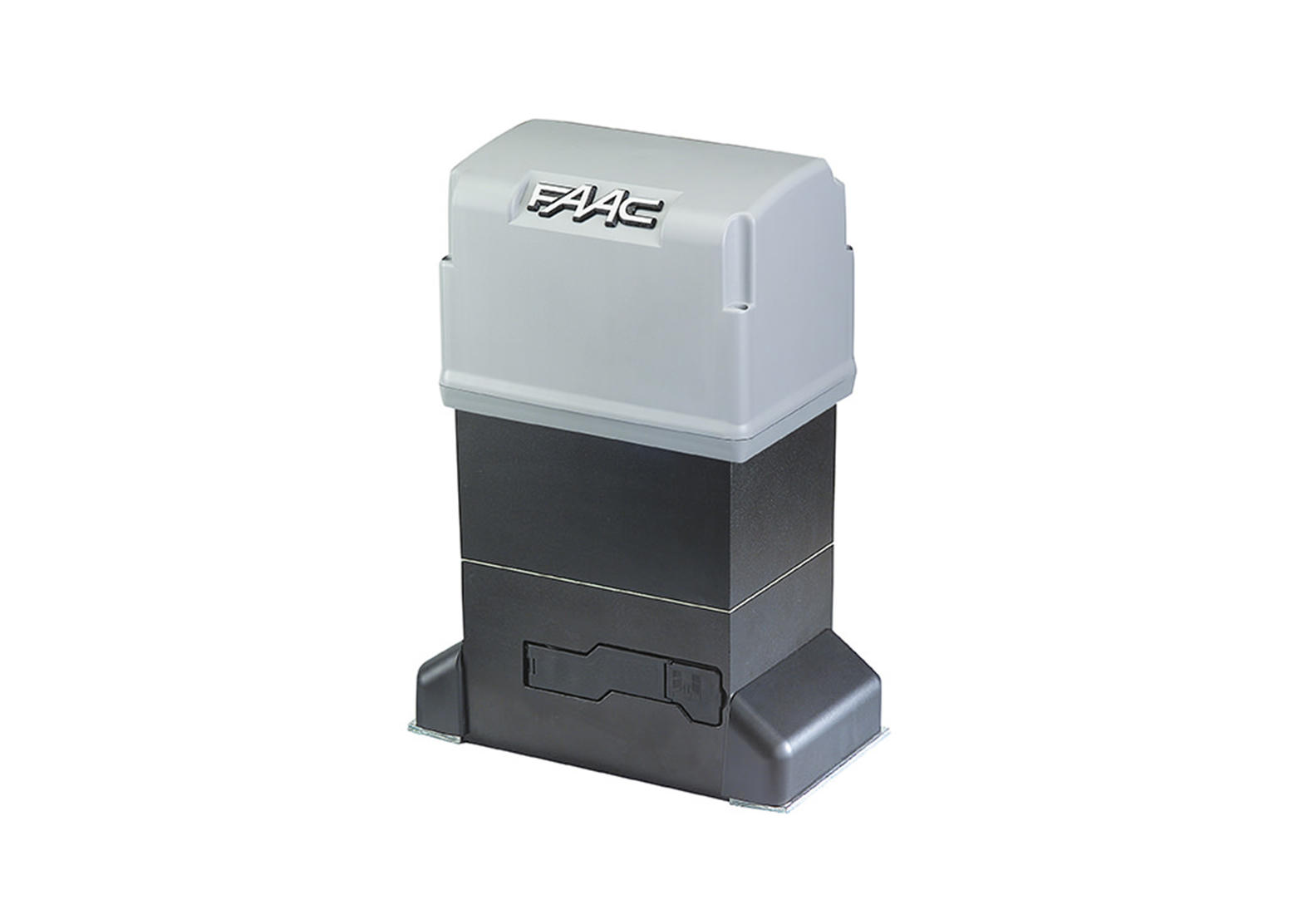

844 ER Slide FAAC-844
Rack-and-pinion commercial slide operator. Continuous-duty hydraulics/gear motor for heavy sliding gates on apartments, plants, and gated communities.
Keypad Entry
Wired and wireless outdoor keypads for gated entries, pedestrian gates, and service doors.
Wired keypad

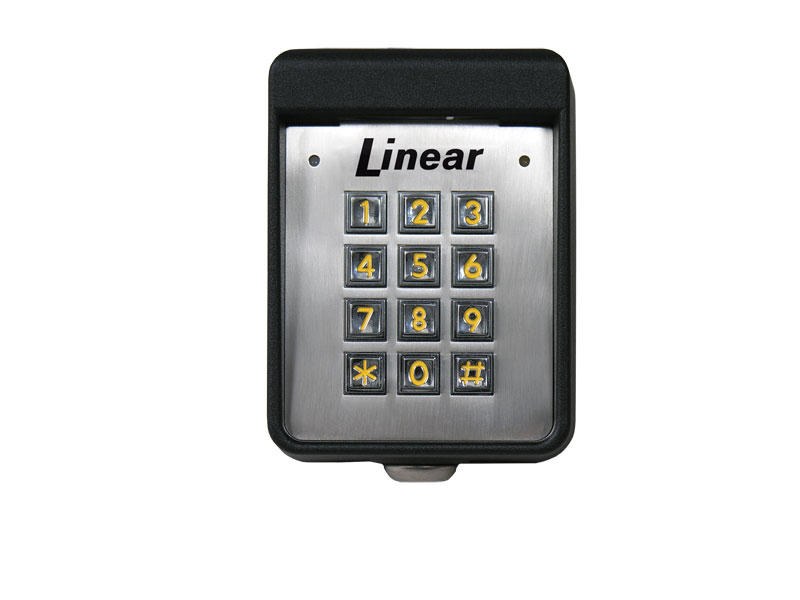

Linear AK-11 Exterior Digital Keypad AK-11
Self-contained outdoor keypad in a cast-aluminum housing. Wall or pedestal mount, indoor or outdoor. Add and delete codes at the unit — a standard keypad for gates, doors, and parking.
Wireless keypad

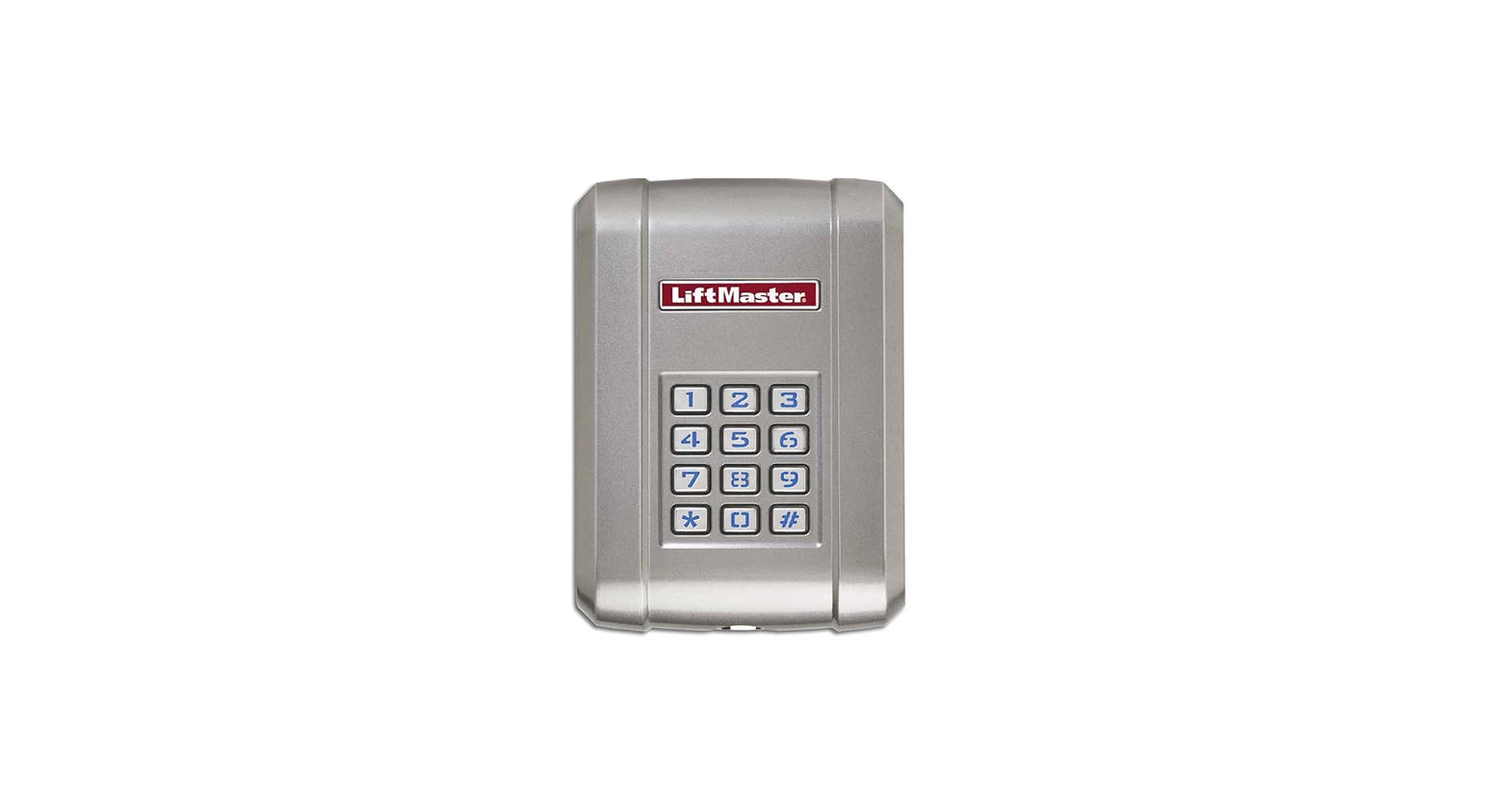

LiftMaster KPW250 Wireless Keypad KPW250
Wireless commercial keypad — 250 permanent PINs plus 10 temporary codes. Security+ 2.0, works with LiftMaster gate operators (and Multi-Code 300 MHz). Metal housing, LED backlight, post or wall mount.
Telephone Entry Systems
CellGate / AES / DoorKing / DoorBird
Talk to visitors at the gate from your phone — cellular, video, IP, or classic telephone entry. CellGate Watchman models from the W410 through the 11″ WXL. We match the panel to the operator and the way you want to let people in.
Cellular entry

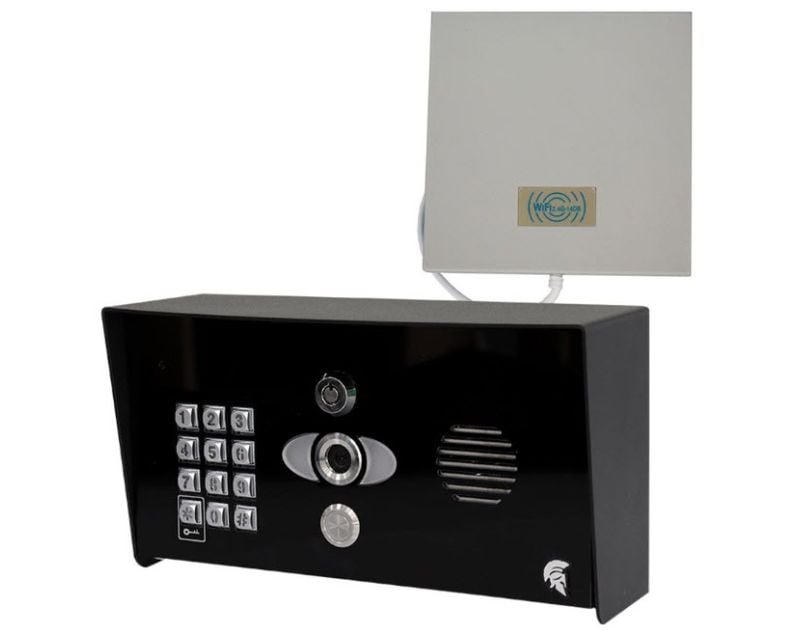

AES Global Cellular Entry AES-1
Cellular telephone entry — the visitor presses call and it rings your cell or landline. No phone line at the gate; a SIM / 4G connection carries the call. App-ready models available.
Cellular + photo

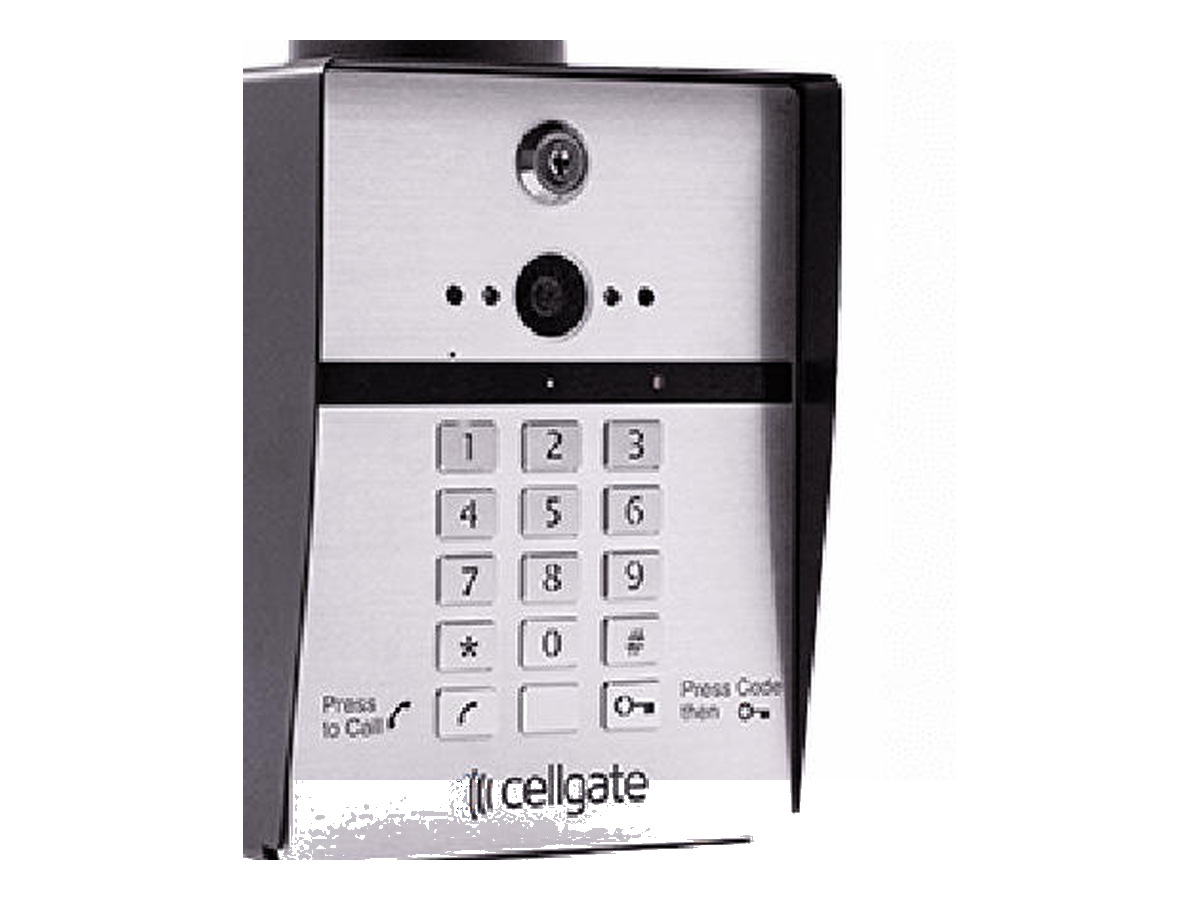

Watchman W410 CG-W410
Cellular telephone entry with photo capture — no landline at the gate. Voice call, numeric keypad, and the CellGate app. Dual SIM (AT&T / Verizon). Best for single-family and light commercial swing or slide gates.
Live video

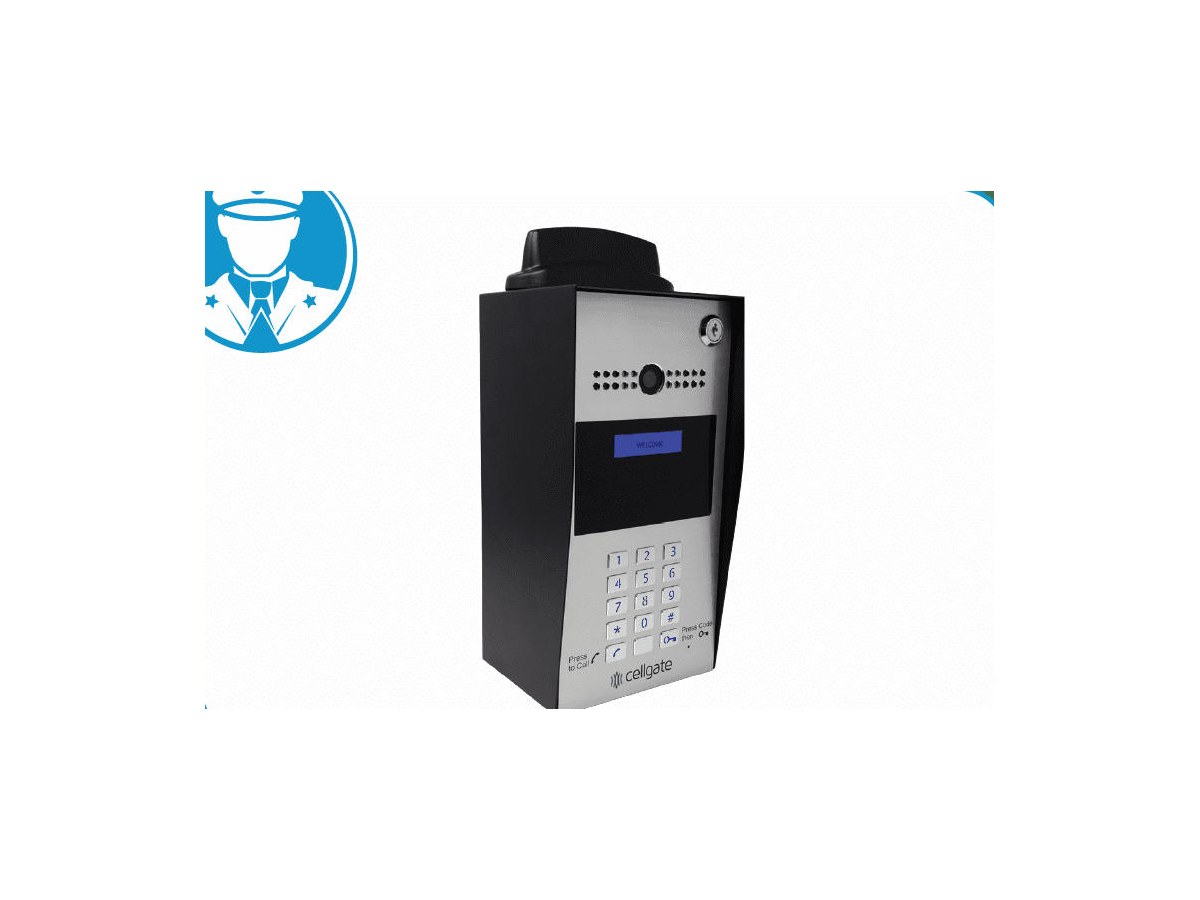

Watchman W450 / W452 CG-W450
Live video of the visitor on your phone, PIN codes, and photo history. W450 is LTE (AT&T / Verizon, no internet at the gate); W452 is hardwired internet/VPN. Single-family and small commercial entries.
Directory + video

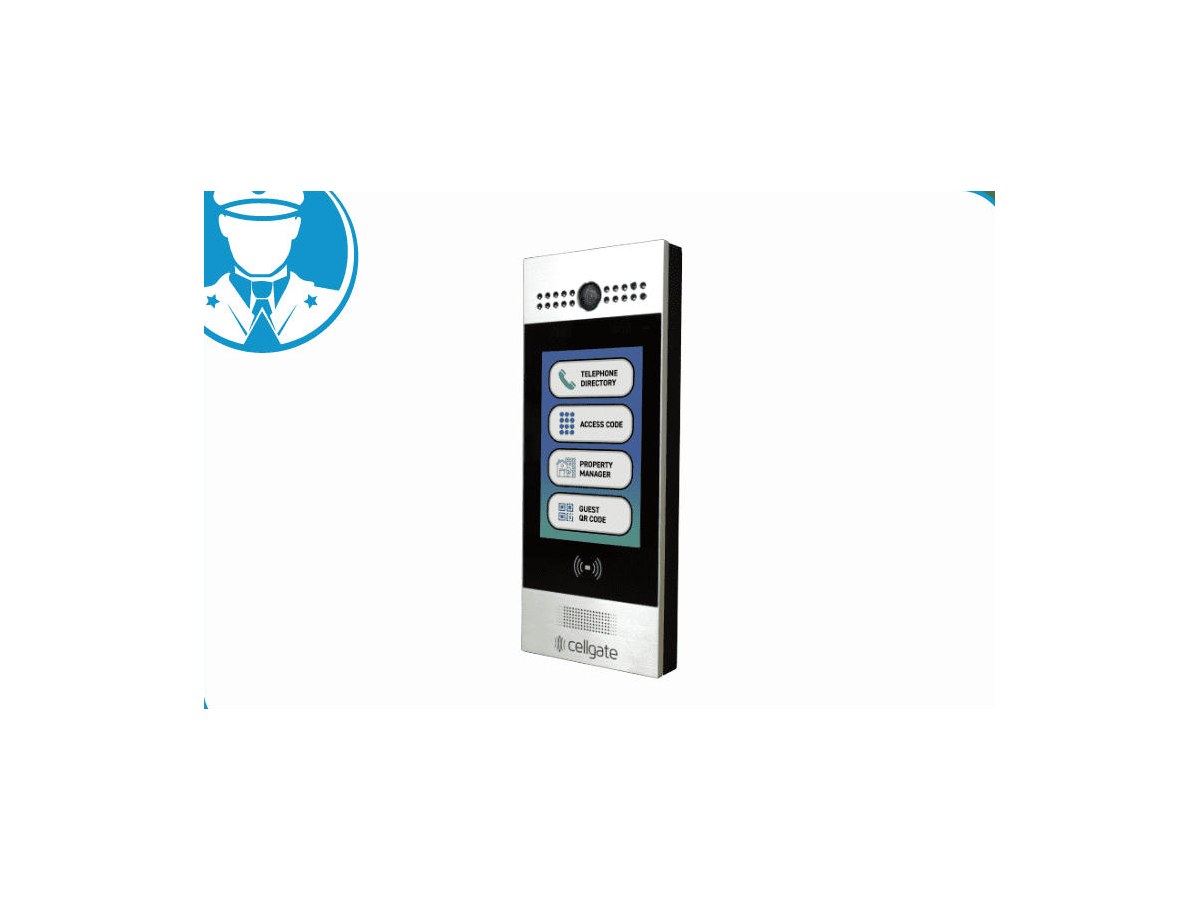

Watchman W461 / W462 CG-W461
7.5″ color touchscreen directory, live video, QR / PIN visitor passes, and a built-in HID card reader. Up to 1,500 directory listings. W461 is LTE or internet; W462 is hardwired internet/VPN.
8″ directory

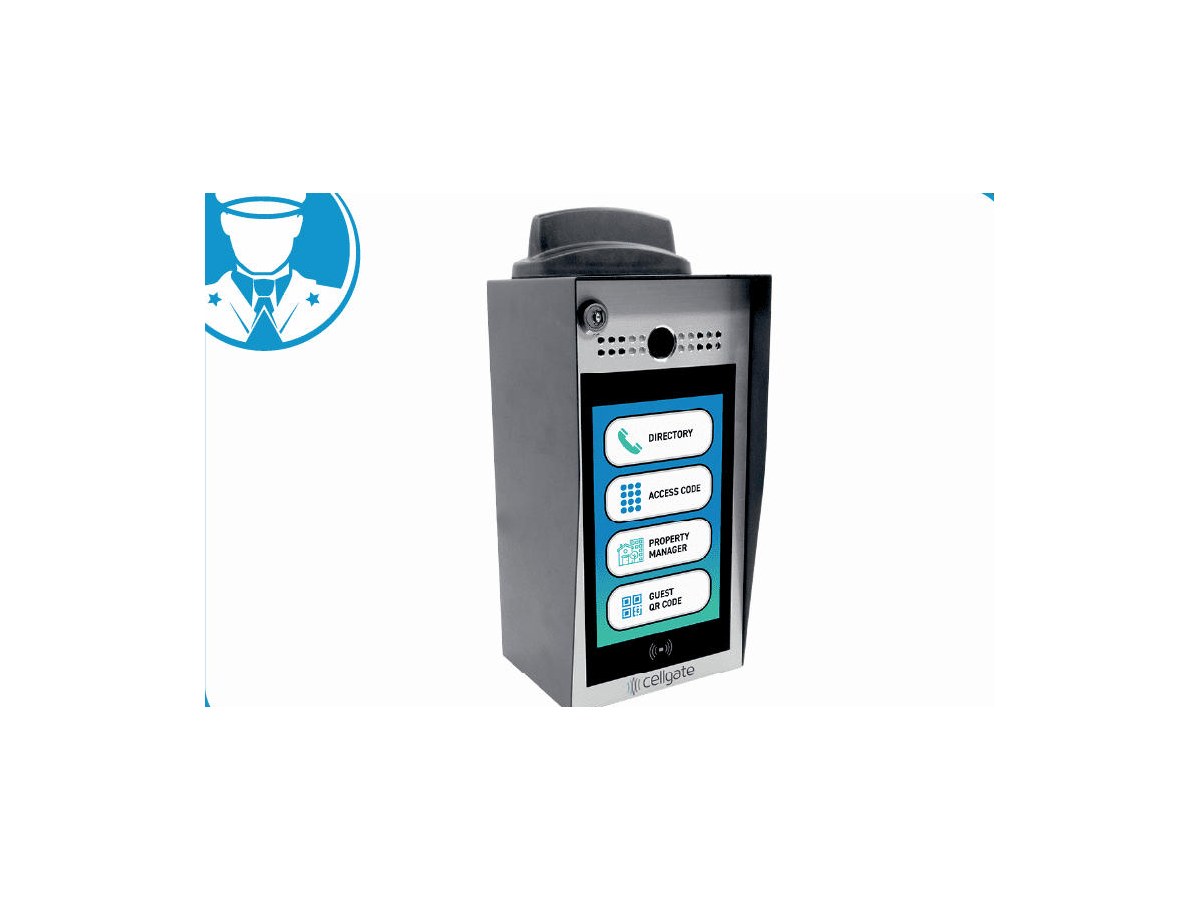

Watchman W480 / W482 CG-W480
8″ sunlight-readable touchscreen for busier entries. Live video, QR / PIN passes, HID reader, up to 1,500 listings. W480 is LTE or internet; W482 is hardwired internet with optional SurePath cellular failover.
11″ multi-property

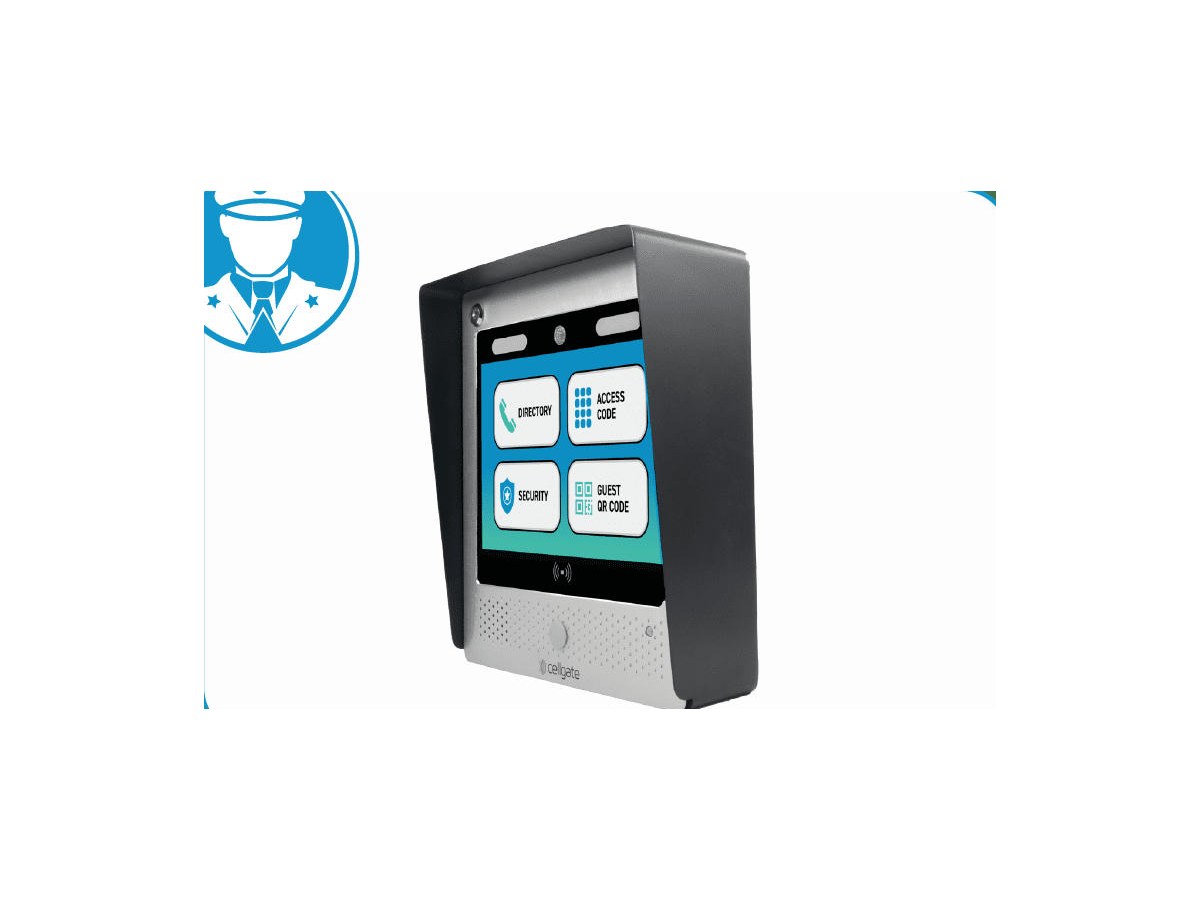

Watchman WXL / WXL2 CG-WXL
11″ color touchscreen for apartments, HOAs, and multi-property sites. Up to 6,000 directory listings, live video, QR / PIN passes, HID reader. WXL is LTE or internet; WXL2 is hardwired internet with optional SurePath failover. Yardi and RealPage ready.
IP video station

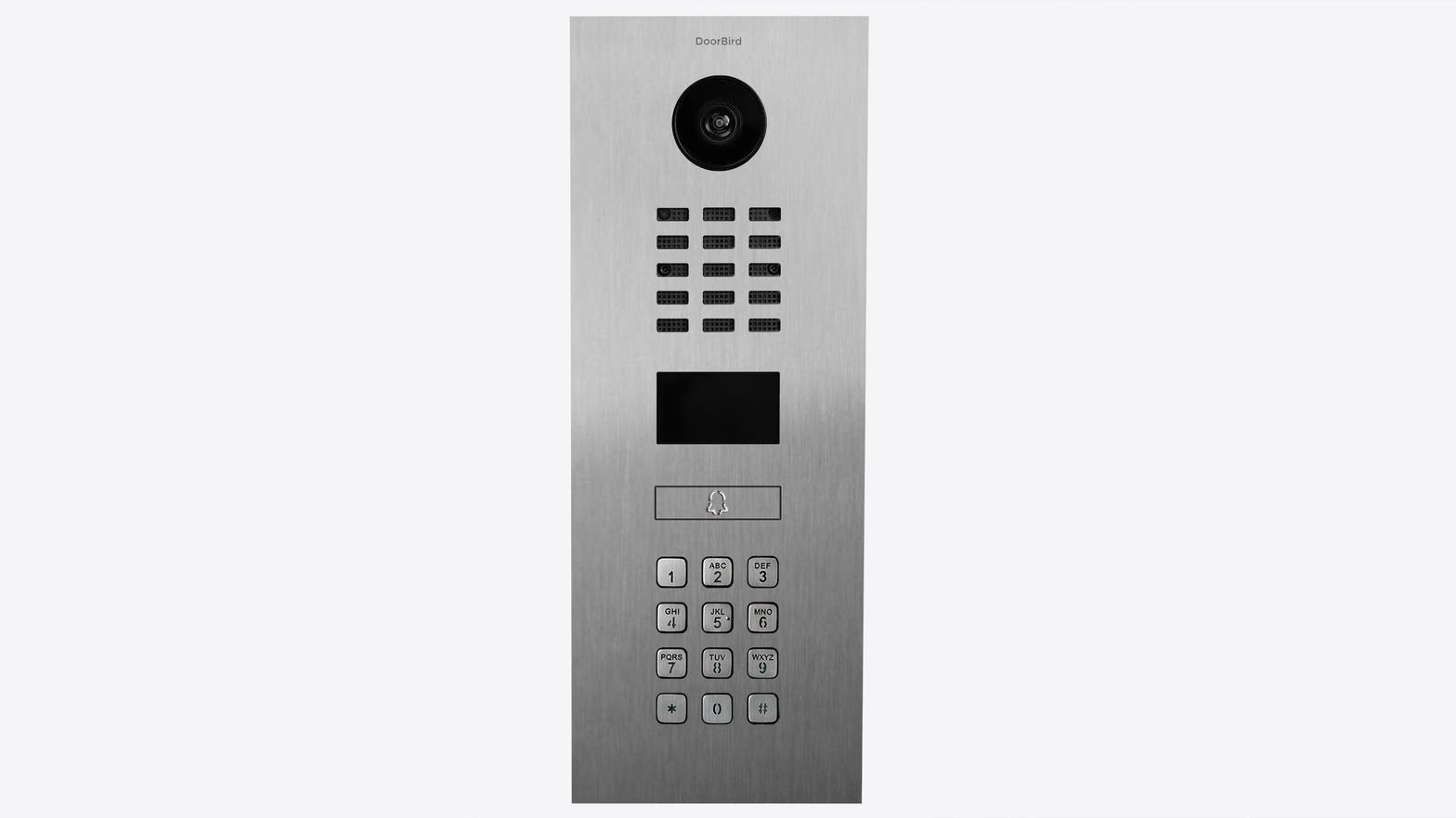

DoorBird IP Video Station DB-D21
IP video door station (D2101KV and related models). HD camera, two-way audio, keypad, and smartphone control. Works as the entry panel on many access systems.
Classic telephone entry

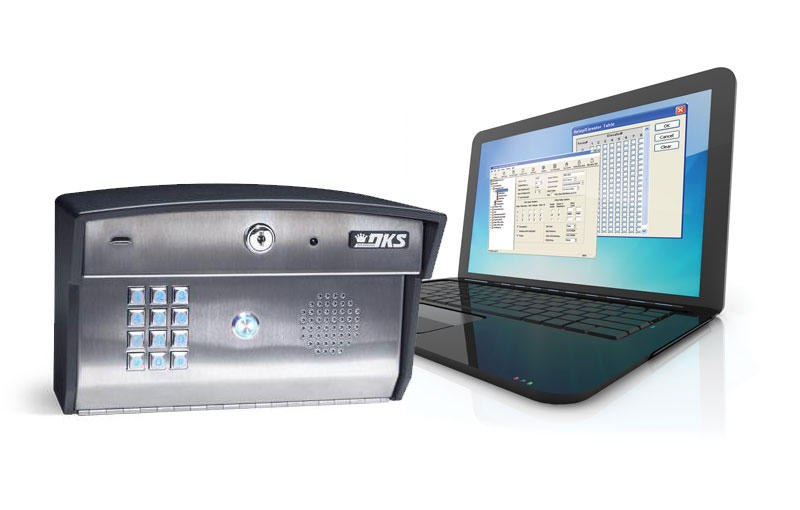

DoorKing 1812 Access Plus DK-1812
Telephone entry that uses your existing phone as the intercom. Press 9 to open the gate. Up to 27 numbers, and expandable to extra doors or gates. Common on homes and small gated entries.
Exit Devices & Safety
Cartell / AES / SECO-LARM / Optex
Free-exit sensors so you leave without a remote, photo cells that hold the gate if something is in the path, and above-ground virtual loops where a saw-cut loop is not an option. Spec’d with the operator on every automated gate we install.
Exit sensor

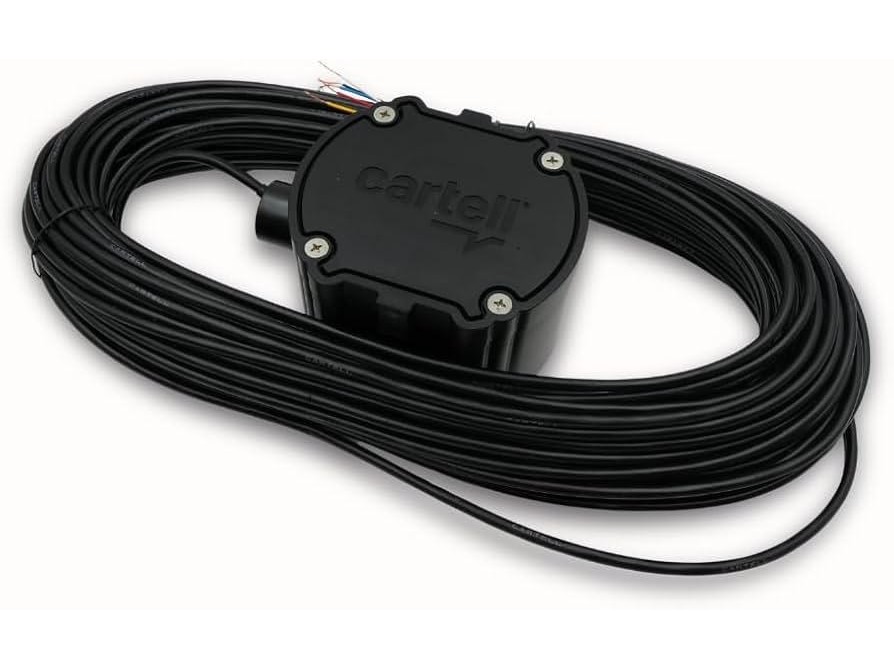

Cartell Free-Exit Devices CART-1
Hands-free exit so a vehicle leaving the property opens the gate — no remote, keypad, or buried loop. CP-4 is the wired magnetometer wand (detects moving steel only, so people and animals do not trigger it). CW-SYS is the wireless dual-purpose system — no trenching, works with electric or solar operators, and can also trip lights or a driveway alert.
Exit loop

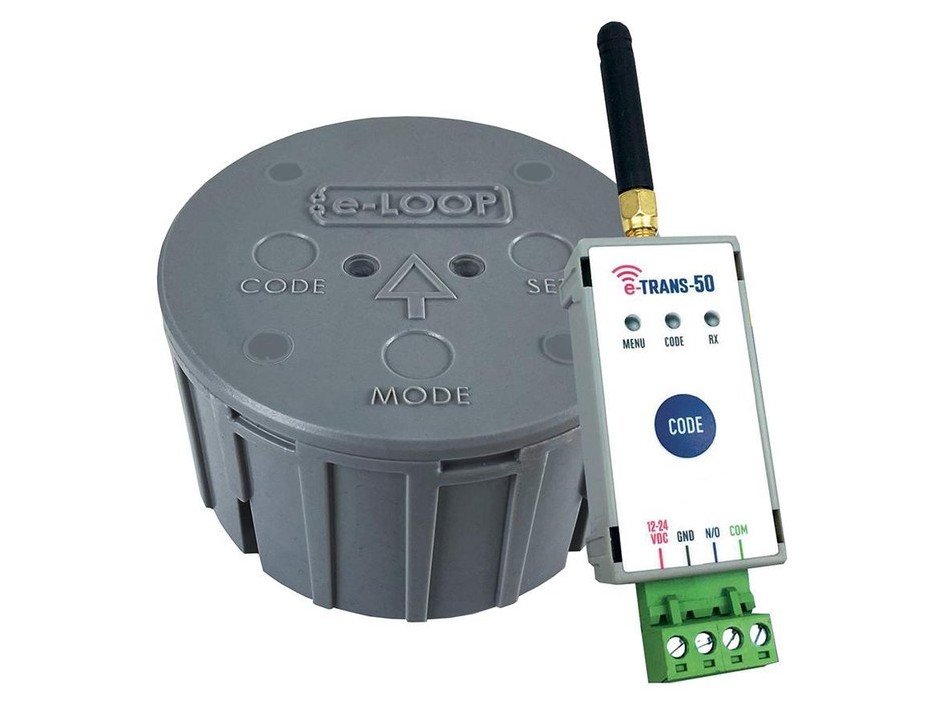

AES Global e-Loop Exit AES-EL
Wireless vehicle-detection exit devices that sit on (or in) the driveway and open the gate as you leave. Magnetometer plus radar confirmation — Mini for homes, commercial surface and in-ground for higher traffic, plus post-mount. Pairs with an e-Trans receiver at the operator. No saw-cut loop in most installs.
Photo eye

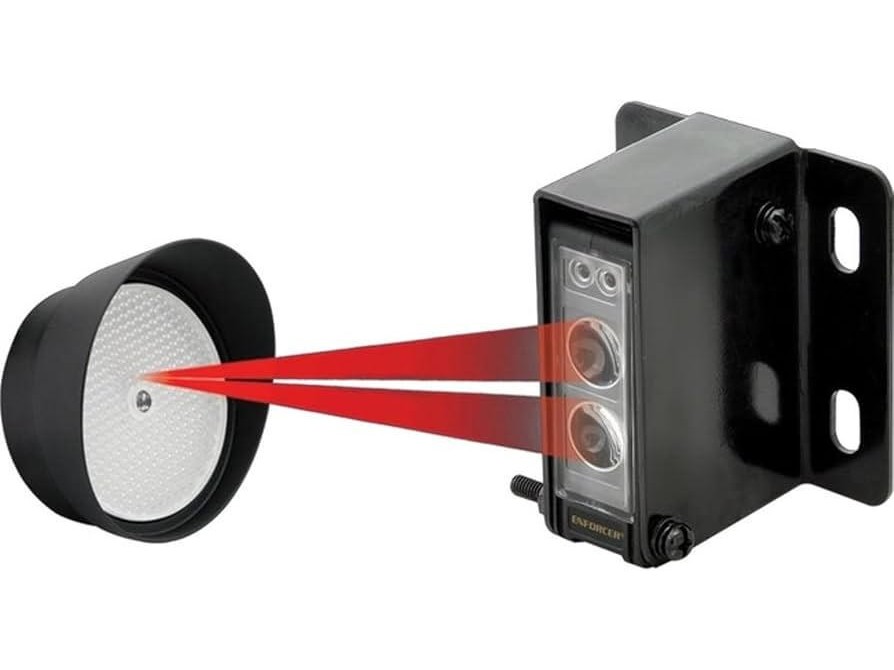

SECO-LARM ENFORCER Photo Cells SL-E936
UL325-ready photoelectric safety beams for swing and slide gates. The ENFORCER E-936-S45RRGQ is a weatherproof (IP66) retro-reflective photo cell with a 45 ft range, alignment LED, and included reflector and bracket. Break the IR beam and the operator holds or reverses — required safety on automated entries.
Virtual loop
Optex Virtual Loop 2.0 OPX-OVS
Above-ground vehicle presence sensor (OVS-02GT) that replaces a saw-cut loop. Distance-measuring radar detects moving or stopped vehicles out to 26 ft and can ignore pedestrian traffic. Mounts on a post or wall — no cutting of concrete or asphalt. Direct connection to the gate operator; settings from a phone app.
Product Manuals
Installation and owner manuals are on the manufacturer sites. We do not store the PDFs here. Links open in a new tab.
- 6050 / 6100 Swing: Owner's manual and spec sheets
- 6500 Swing: Owner's manual and spec sheets
- 9050 Slide: Owner's manual and spec sheets
- 9100 Slide: Owner's manual and spec sheets
- G-5 / F-1 Swing: G-5 user manual (PDF) · F-1 user manual (PDF)
- X-390 Swing: X-390 user manual (PDF)
- T-21 Swing: T-21 user manual (PDF)
- K-2 Slide: K-2 user manual (PDF)
- K-2S Solar Slide: K-2 Solar manuals
- L-3 / Q-7 Slide: L-3 user manual (PDF) · Q-7 user manual (PDF)
- 390 Swing: FAAC USA manuals
- 400 Swing: FAAC USA manuals
- C720 Slide: FAAC USA manuals
- 844 ER Slide: FAAC USA manuals
- Linear AK-11 Exterior Digital Keypad: AK-11 installation info
- LiftMaster KPW250 Wireless Keypad: KPW250 product and programming
- AES Global Cellular Entry: AES Global product manuals
- Watchman W410: CellGate resources
- Watchman W450 / W452: W450 end user guide
- Watchman W461 / W462: CellGate resources
- Watchman W480 / W482: CellGate resources
- Watchman WXL / WXL2: CellGate resources
- DoorBird IP Video Station: D21x installation manual (PDF)
- DoorKing 1812 Access Plus: 1812 Access Plus manuals
- Cartell Free-Exit Devices: CW-SYS / CP-4 product info
- AES Global e-Loop Exit: e-Loop downloads
- SECO-LARM ENFORCER Photo Cells: E-936 installation info
- Optex Virtual Loop 2.0: OVS-02GT product and manuals
Request an operator package
Send the gate opening, swing or slide, residential or commercial, and how you want to open it (keypad, phone, remote, or app). We will quote the operator, entry system, exit and safety devices, and the gate together.
